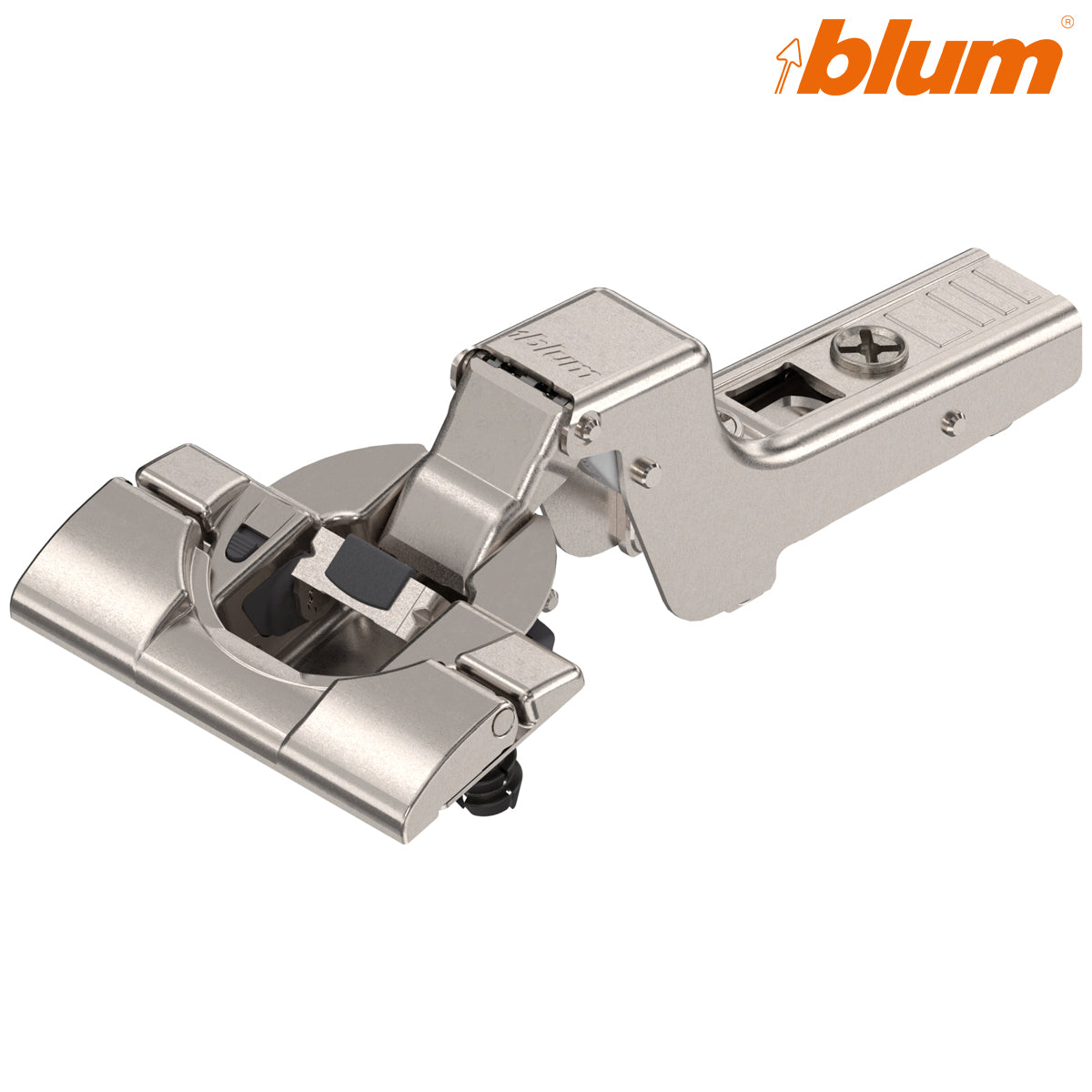

Blum CLIP top BLUMOTION 110° Inset INSERTA Hinge 71B3790

The Blum CLIP top BLUMOTION 71B3790 is a sprung 110° concealed hinge for fully inset cabinet doors. Its full-cranked hinge arm positions the closed door inside the cabinet opening, creating a clean, flush appearance rather than covering the front edge of the cabinet side.

This version combines integrated BLUMOTION soft close with Blum’s tool-free INSERTA hinge-cup fixing, making it particularly suitable for efficient cabinet production and repeated installation.

Integrated BLUMOTION soft close

BLUMOTION is incorporated directly into the hinge cup. It slows the door during the final stage of closing, providing a smooth and controlled movement without requiring a separate soft-close adapter.

The BLUMOTION function can be switched off on individual hinges. This allows the closing action to be adjusted for smaller or lighter cabinet doors.

Fully inset cabinet-door application

An inset door closes within the cabinet opening instead of overlapping the cabinet sides. The 71B3790 uses a full-cranked hinge arm to position the door correctly within the cabinet.

Inset installations require careful planning of the door thickness, gaps, hinge-cup drilling distance and mounting-plate position. Blum specifies that the cabinet-side mounting-plate fixing position should be moved back by the door thickness plus 1.5mm.

Tool-free INSERTA cup installation

INSERTA is Blum’s tool-free hinge-to-door fixing system. The 35mm hinge cup and its integrated fixing mechanism are installed into correctly prepared door borings without conventional fixing screws.

The door must still be drilled accurately. INSERTA does not remove the requirement for the 35mm cup bore and two prepared fixing holes.

Once the hinge is fitted to the door, Blum’s CLIP mechanism allows the hinge arm to be attached to or removed from a compatible mounting plate without tools.

Key features

• Genuine Blum CLIP top BLUMOTION hinge
• Designed for fully inset cabinet doors
• Full-cranked hinge arm
• 110° opening angle
• Sprung, self-closing action
• Integrated BLUMOTION soft close
• BLUMOTION can be switched off
• Tool-free INSERTA hinge-cup fixing
• Tool-free CLIP connection to the mounting plate
• 35mm concealed hinge cup
• Three-dimensional door adjustment
• Suitable for doors up to 24mm thick
• Nickel-plated all-metal construction
• Supplied as one hinge

Technical specifications

Mounting plate information

The INSERTA fixing mechanism is already incorporated into the hinge cup. There is no separate “INSERTA boss plate” to purchase.

A compatible cabinet-side Blum CLIP mounting plate is required and sold separately. The correct plate spacing and drilling position depend on the door thickness, required gaps and cabinet construction. A trial installation is recommended before drilling a complete set of doors.

Alternative inset hinges

• Choose the 71B3750 inset screw-on BLUMOTION hinge for conventional screw fixing.
• Choose the 71B3780 inset knock-in BLUMOTION hinge for machine-pressed dowel installation.
• Choose the 71T3790 sprung inset INSERTA hinge when integrated soft close is not required.
• An Onyx Black 71B3790 version is available for dark cabinet interiors.
• Browse the complete Blum CLIP top hinge collection for other configurations.

The optional Blum 86° opening-angle stop can help prevent the door from opening into an adjacent wall, cabinet or appliance.

Frequently asked questions

What is an inset cabinet hinge?

An inset hinge positions the closed door inside the cabinet opening. The door sits flush within the cabinet rather than covering the front edges of the cabinet sides.

What does INSERTA mean?

INSERTA is Blum’s tool-free hinge-cup fixing system. It secures the cup in correctly prepared door borings without conventional fixing screws.

Does INSERTA mean drilling is unnecessary?

No. An accurately positioned 35mm cup bore and two fixing holes are still required.

Does the hinge include a mounting plate?

No. The INSERTA mechanism is part of the hinge, but a compatible cabinet-side Blum CLIP mounting plate must be ordered separately.

Can BLUMOTION be switched off?

Yes. The integrated damping mechanism can be deactivated on individual hinges when required.

What is the difference between 71B3790 and 71B3750?

Both are inset hinges with integrated BLUMOTION. The 71B3790 has a tool-free INSERTA cup, while the 71B3750 uses a conventional screw-on cup.

What is the difference between 71B3790 and 71B3780?

The 71B3790 uses tool-free INSERTA fixing. The 71B3780 uses steel dowels that must be pressed into prepared holes with suitable insertion equipment.
