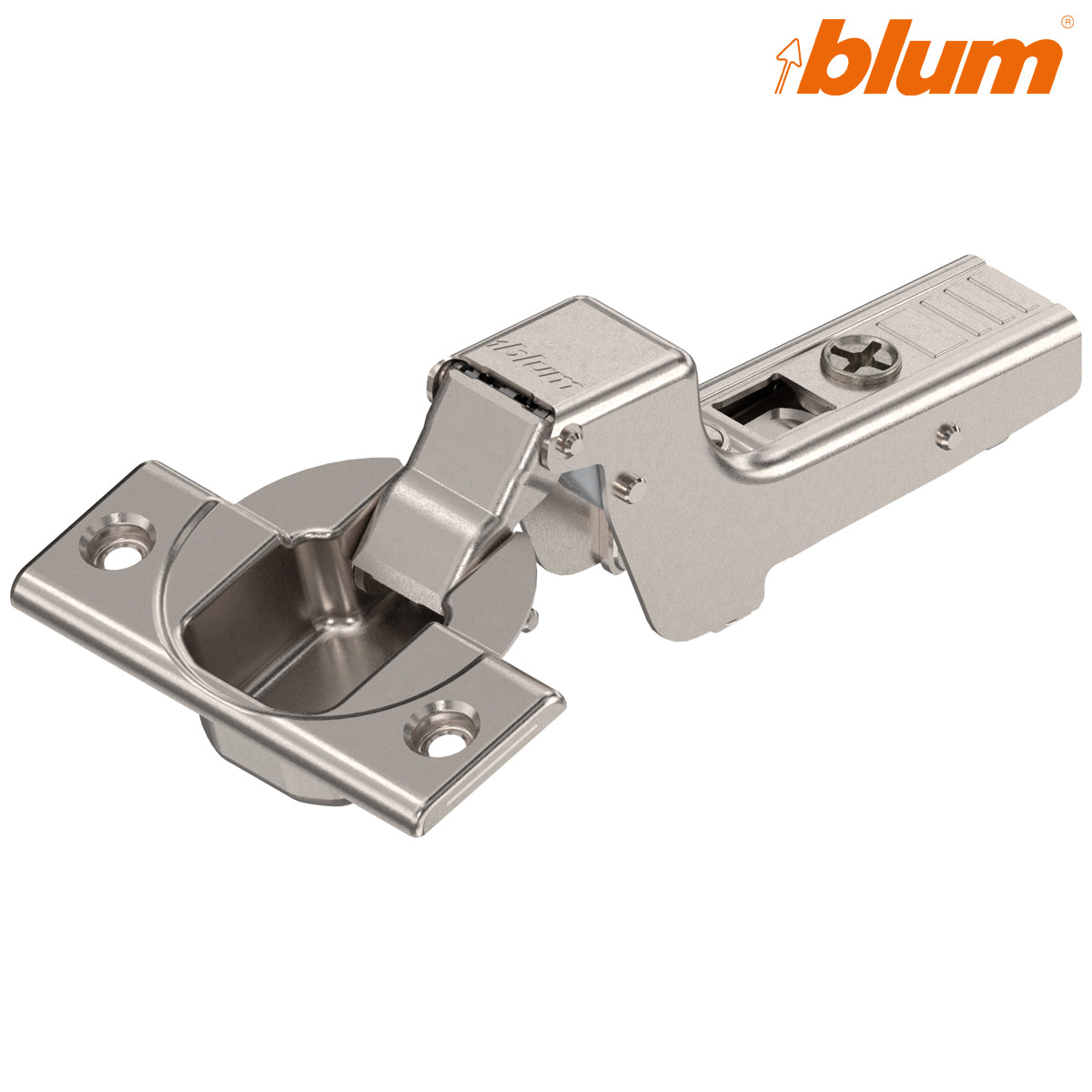

  • BLUM CLIP HINGE 110deg INSET SCREW-ON by JULIUS BLUM UK LTD
1 1

Blum 71T3750 CLIP top 110° Inset Sprung Screw-On Hinge, Nickel

Blum 71T3750 CLIP top 110° Inset Sprung Screw-On Hinge, Nickel

Stock Code: HI71T3750

£1.73 GBP
Sale
View full details
Previous
BLUM TIP-ON DOOR LONG SCREW CBK
Next
BLUM MOVENTO BLUMOTION RUNNER FE 60KG 750 PR

PRODUCT DESCRIPTION

Blum 71T3750 CLIP top 110° Inset Screw-On Hinge

Fit an inset cabinet door neatly within its opening with the fully cranked arm of the Blum 71T3750. This nickel-plated steel concealed hinge has a 110° opening angle and a closing spring, making it suited to planned inset kitchen cabinetry, wardrobes and fitted furniture. One purchase supplies one hinge; the cabinet mounting plate is separate.

Inset fit and screw-on cup

An inset door sits inside the cabinet opening, not over the front edge of the side panel. Its gaps and clearance depend on front thickness, cup drilling distance, mounting-plate position and cabinet construction. Prepare a 35 mm cup drilling, then secure this model’s cup to the door with suitable screws. Its recorded specifications include a 13 mm cup drilling depth, 45 mm fixing-hole centres, a 3–7 mm drilling distance, ±2 mm side adjustment and +3/−2 mm spiral-screw depth adjustment. Check the full Blum drilling and collision plan for your exact front and mounting plate before drilling, rather than assuming a universal door-thickness limit or fixed inset gap.

Spring closing, not integrated soft close

The spring helps pull the door closed; this 71T model has no integrated BLUMOTION damper. For a verified active inset alternative with built-in soft close and the same screw-on cup method, see the 71B3750 BLUMOTION hinge. If the door has the correct additional INSERTA drillings and tool-free cup fixing is preferred, compare the 71T3790 inset INSERTA hinge. Screw-on and INSERTA are different cup-fixing systems.

CLIP mounting and ordering

The screw-on cup stays attached to the door while the hinge arm clips onto a compatible Blum CLIP mounting plate without tools. Select and buy the plate separately to suit the cabinet fixing, plate height and required inset position. The CLIP connection allows door removal and refitting without unscrewing the cup. Browse the Blum CLIP top hinge range for other door applications.

Key specifications

  • Blum part 71T3750; Hart Wholesale SKU HI71T3750
  • Inset/fully cranked arm; 110° opening; sprung self-closing, no integrated soft close
  • 35 mm steel cup, screw-on door fixing; 13 mm recorded cup drilling depth
  • 45 mm fixing-hole centres; 3–7 mm drilling distance, subject to the exact planning diagram
  • Nickel-plated steel; one hinge; compatible mounting plate sold separately

Frequently Asked Questions

Does the 71T3750 have soft close?

No. It is a sprung self-closing CLIP top hinge without integrated BLUMOTION.

Is this an INSERTA hinge?

No. This cup is screw-fixed to the door. The 71T3790 is the inset INSERTA alternative for a correctly prepared door.

What does inset mean?

The closed door sits within the cabinet opening rather than overlapping the cabinet sides.

Is a mounting plate included?

No. Choose and purchase a compatible Blum CLIP plate separately for the cabinet and desired inset position.

Can the door be removed without unscrewing its cup?

Yes. Release the CLIP arm from the cabinet-side plate while leaving the screw-on cup fitted to the door.

Is every 24 mm-thick front suitable?

Not automatically. Door profile, cup position, plate selection and opening clearance must be checked against the appropriate Blum planning diagram.

TECHNICAL DETAILS

  • Application: Inset
  • Colour: Nickel
