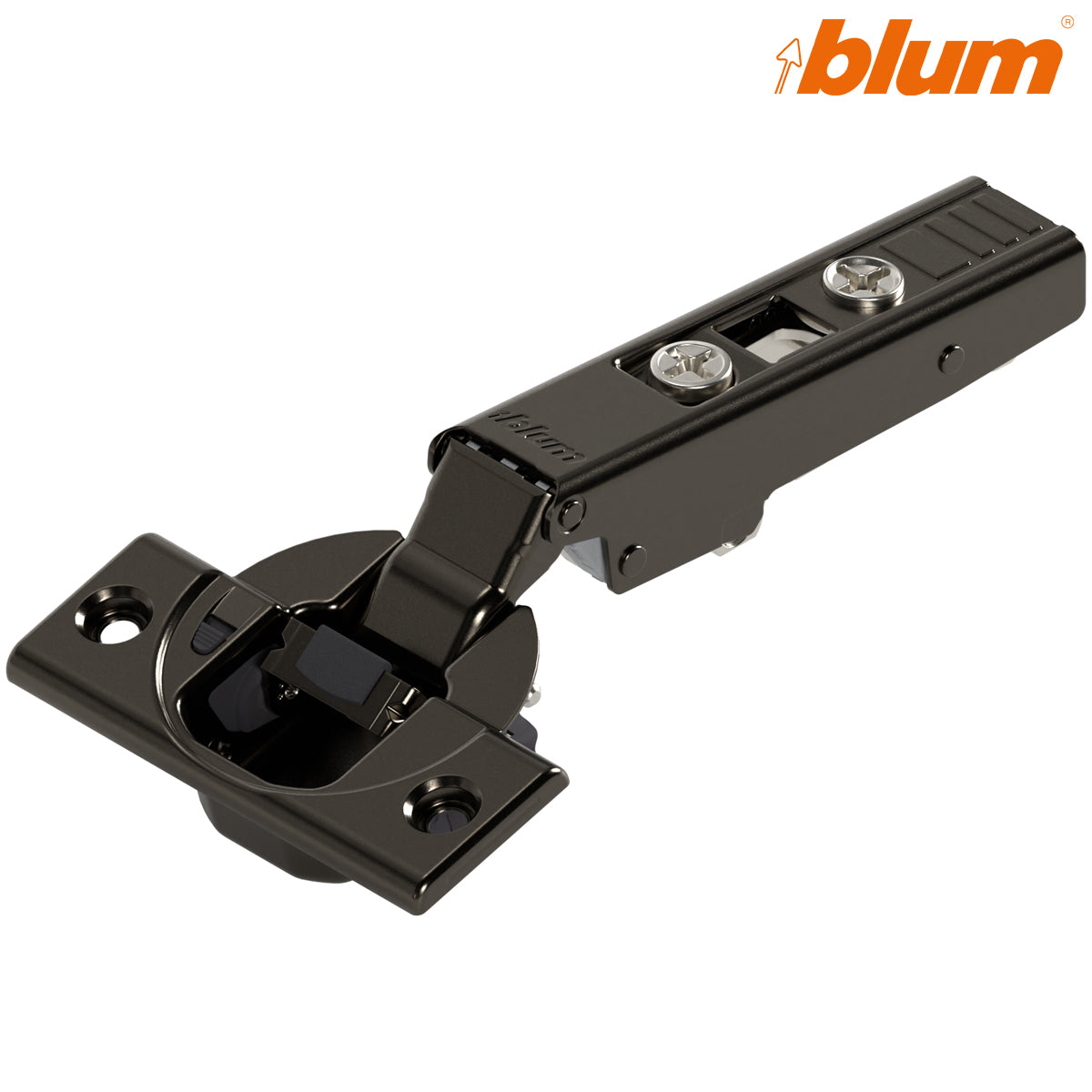

Blum 71B3550 CLIP top BLUMOTION 110° full-overlay screw-on hinge – Onyx Black

The Blum 71B3550 is a concealed CLIP top hinge for standard full-overlay cabinet doors. Its straight hinge arm, 110° opening angle and integrated BLUMOTION soft close suit kitchens, bedrooms, media furniture and fitted cabinetry.

The Onyx Black finish coordinates with dark cabinet interiors and contemporary furniture. This version uses a conventional screw-on hinge cup, making it useful for replacement work, bespoke furniture and workshop installation.

Technical details

• Blum part number: 71B3550
• Hart Wholesale SKU: HIO71B3550
• Type: CLIP top BLUMOTION concealed hinge
• Application: full overlay
• Hinge arm: straight
• Opening angle: 110°
• Closing action: spring closing with integrated, deactivatable BLUMOTION
• Hinge-cup fixing: screw-on
• Hinge-cup diameter: 35 mm
• Cup drilling depth: 13 mm
• Fixing-hole centres: 45 mm
• Fixing-hole offset: 9.5 mm from the cup centreline
• Cup drilling distance: 3–7 mm
• Hinge-cup flange: 57 x 22 mm
• Side adjustment: ±2 mm
• Depth adjustment: +3/-2 mm
• Height adjustment: through the selected mounting plate
• Material: steel
• Finish: Onyx Black
• Quantity: one hinge
• Mounting plate: supplied separately

BLUMOTION soft close

BLUMOTION is built into the hinge cup and slows the door during the final stage of closing for smooth, quiet movement. The damping function can be deactivated on individual hinges where less closing resistance is required.

Planning and fitting

The screw-on hinge cup requires a 35 mm bore approximately 13 mm deep, with two screw-fixing positions on 45 mm centres. Unlike INSERTA and knock-in hinges, this version does not require separate 8 mm dowel holes. Select suitable fixing screws for the door material and thickness.

A compatible Blum CLIP mounting plate is required and must be ordered separately. Plate height depends on the cabinet construction, drilling distance and required door overlay.

For tool-free cup installation, compare the Blum 71B3590 overlay INSERTA hinge. For pressed-in dowel fitting, see the Blum 71B3580 overlay knock-in hinge. For the verified nickel counterpart, see the Blum 71B3550 full-overlay screw-on hinge.

Matching components

The hinge is supplied individually. Select the mounting plate according to the required overlay and cabinet construction. Do not mix standard CLIP top and CLIP top BLUMOTION hinges on the same door unless the complete arrangement has been specifically planned.

Frequently Asked Questions

Does the Blum 71B3550 include soft close?

Yes. The BLUMOTION soft-close mechanism is integrated directly into the hinge cup.

Can BLUMOTION be deactivated?

Yes. The damping function can be switched off on individual hinges when less closing resistance is required.

What does screw-on mean?

It means the 35 mm hinge cup is secured to the back of the cabinet door using screws through the hinge-flange fixing holes.

Is this an overlay or inset hinge?

This is a full-overlay hinge with a straight arm. It is designed for doors that cover the front edge of the cabinet side.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

What drilling pattern is required?

The hinge requires a 35 mm cup hole approximately 13 mm deep, with two screw-fixing positions arranged on 45 mm centres.

Is one hinge supplied?

Yes. This listing is for one hinge. Mounting plates and other installation components are supplied separately.
