BLUM CLIP GLASS HINGE 94deg OVERLAY SCREW-ON

BLUM CLIP GLASS HINGE 94deg OVERLAY SCREW-ON

Stock Code: HI7541G

£2.80 GBP
Sale
View full details

PRODUCT DESCRIPTION

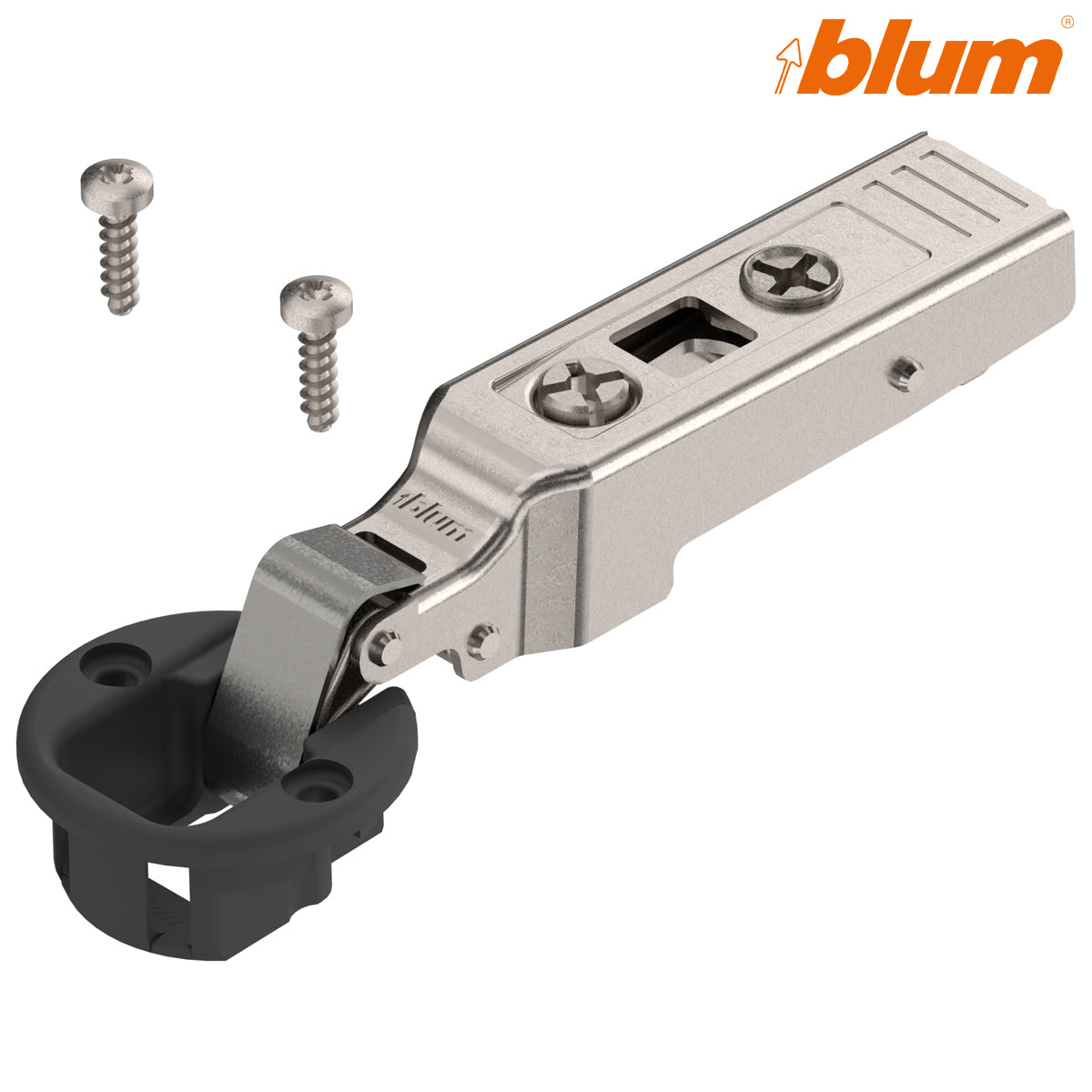

Blum 75T4100 CLIP Top 94° Overlay Glass Door Hinge

The Blum 75T4100 is a sprung CLIP top concealed hinge designed specifically for full-overlay glass cabinet doors. It provides a 94° opening angle and is suitable for drilled frameless glass fronts between 4.5mm and 7mm thick.

The hinge’s internal spring pulls the glass door into the closed position. This makes it self-closing, but it does not contain integrated BLUMOTION soft-close.

Important: this is not a no-drill glass hinge. The glass door requires an accurately manufactured 26mm fixing hole. Glass drilling and edge preparation should always be completed by a suitably equipped glass processor before the glass is toughened.

Full-overlay glass-door application

The straight hinge arm is intended for an overlay application, where the closed glass door covers most of the cabinet side panel. It is suitable for display cabinets, glass-fronted furniture, kitchen wall units and other cabinets using frameless glass doors.

The final overlay depends on the mounting-plate height, drilling position and cabinet construction. A trial assembly should be completed before producing multiple doors.

Drilled-glass screw fixing

The hinge uses a glass-specific screw-on boss rather than the conventional 35mm cup used in timber cabinet doors. The glass requires a 26mm diameter hole, with a permitted tolerance of +0.2/−0mm.

The recommended distance from the outside edge of the 26mm drilling to the edge of the glass door is 5.5–7mm. The correct drilling position must be confirmed from Blum’s planning information for the required overlay.

The boss-fixing screws are supplied with the hinge. Tightening and glass preparation must follow Blum’s instructions to avoid damaging the door.

CLIP top installation and adjustment

The hinge arm clips onto a compatible Blum mounting plate, allowing the glass door to be attached or removed from the cabinet without undoing the mounting screws.

Three-dimensional adjustment and spiral-screw depth adjustment allow the door position and gaps to be aligned accurately after installation.

Key features

  • Genuine Blum CLIP top glass-door hinge
  • Blum part number 75T4100
  • Designed for full-overlay glass cabinet doors
  • Suitable for drilled frameless glass
  • For glass thicknesses from 4.5–7mm
  • 94° opening angle
  • Sprung and self-closing
  • No integrated BLUMOTION soft-close
  • 26mm glass drilling required
  • Screw-on glass-door boss
  • Boss-fixing screws included
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Nickel-plated hinge finish
  • Supplied individually
  • Mounting plate and decorative cover cap sold separately

Technical specifications

application
 glass door hinge
Cranking Overlay application
Opening angle 94
Closing mechanism with spring
Cover cap type 90M2603
Cover cap type 70.1553
Boss material Nylon boss
boss finish Black
Boss assembly screw-on
Flange height 2.5 mm
diameter hinge boss drilling 26 mm
distance between drillings 22 mm
Minimum drilling distance 5.5 mm
Maximum drilling distance 7 mm
arm material Steel
arm finish Nickel plated
collision measurement (hinge arm height) 19 mm
Fixed dimension / factory setting 10 mm
Type of side adjustment With screw
Side adjustment +0,5/-3,5 mm
Type of depth adjustment convenient with spiral screw
Depth adjustment +/-2 mm
Gap 3 mm
Item package 1 piece
packaging Commercial packing
product combination No



Compatible parts and alternative applications

A compatible Blum CLIP top mounting plate must be ordered separately.

For two glass doors sharing a central cabinet panel, use the Blum 75T4200 94° dual glass-door hinge.

For a glass door positioned within the cabinet opening, use the Blum 75T4300 94° inset glass-door hinge.

Browse the complete Blum glass-door hinge collection.

Frequently asked questions

Does the Blum 75T4100 have soft-close?

No. The hinge contains a closing spring but does not have an integrated BLUMOTION damper.

Does the glass door need to be drilled?

Yes. The hinge requires a 26mm diameter hole in the glass. It must not be described as a no-drill glass hinge.

When should the glass be drilled?

The drilling and edge preparation should normally be completed by a specialist glass processor before the door is toughened. Toughened glass cannot normally be drilled or altered afterwards.

What glass thickness is suitable?

The Blum 75T4100 is designed for glass fronts between 4.5mm and 7mm thick.

Are the glass-fixing screws included?

Yes. The boss-fixing screws required to secure the hinge to the prepared glass door are included.

Is the mounting plate included?

No. A compatible Blum CLIP top mounting plate must be selected and ordered separately.

Is the decorative cover cap included?

No. The hinge-boss cover cap is an optional decorative accessory and must be ordered separately.

What is the difference between 75T4100, 75T4200 and 75T4300?

The 75T4100 is for full-overlay doors, the 75T4200 is for dual or half-overlay doors, and the 75T4300 is for inset glass doors.

Is the hinge sold as a pair?

No. Each quantity ordered supplies one hinge.
