Blum CLIP top BLUMOTION 110° Overlay Knock-In Hinge | 71B3580

Blum CLIP top BLUMOTION 110° Overlay Knock-In Hinge | 71B3580

Stock Code: HI71B3580

£2.90 GBP
Sale
View full details

PRODUCT DESCRIPTION

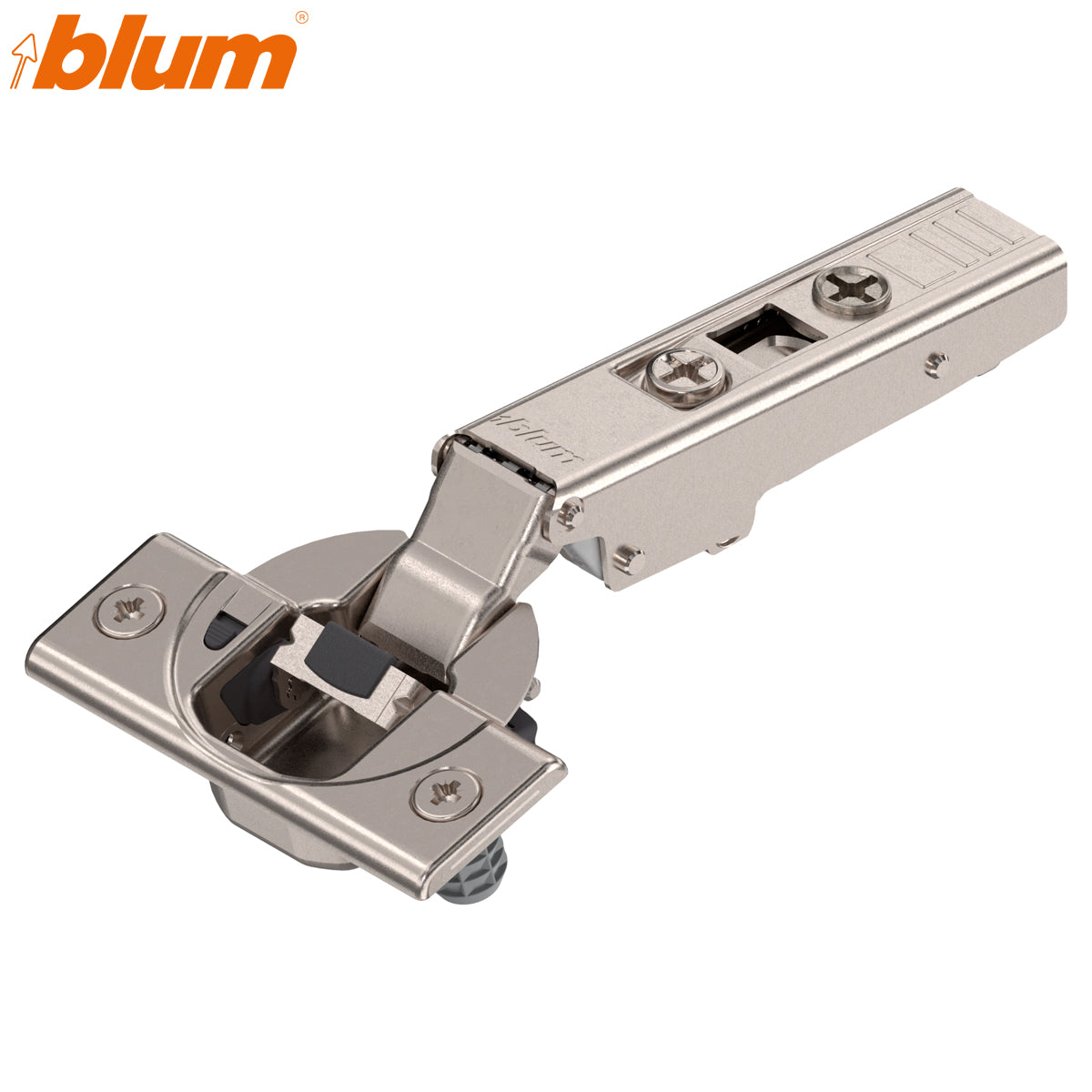

Blum CLIP top BLUMOTION 110° Overlay Knock-In Hinge

The Blum 71B3580 CLIP top BLUMOTION hinge combines integrated soft closing with a production-friendly knock-in cup fixing. Designed for standard overlay cabinet doors, this all-metal concealed hinge provides a 110° opening angle and controlled, quiet closing without requiring a separate soft-close adapter.

The steel hinge cup is secured into a correctly prepared 35mm cup drilling using two knock-in dowels. This fixing method is particularly suited to kitchen, bedroom and furniture manufacturing where hinges are installed using suitable insertion machinery or a hinge insertion ram.

Once fitted to a compatible Blum CLIP mounting plate, the cabinet door can be attached and removed without tools. Three-dimensional adjustment allows accurate door alignment after installation.

Key features

  • Blum CLIP top BLUMOTION concealed cabinet hinge
  • Blum part number 71B3580
  • Designed for overlay cabinet doors
  • 110° opening angle
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated when required
  • Steel knock-in hinge cup
  • 35mm hinge-cup drilling
  • Two 8mm fixing holes on 45mm centres
  • Tool-free CLIP door attachment and removal
  • Three-dimensional adjustment with a suitable mounting plate
  • Convenient spiral screw depth adjustment
  • All-metal construction
  • Nickel-plated finish
  • Supplied as one hinge

Technical specifications

Manufacturer Blum
Blum part number 71B3580
Hart Wholesale stock code HI71B3580
Hinge system CLIP top BLUMOTION
Door application Overlay
Opening angle 110°
Closing mechanism Spring with integrated BLUMOTION
Cup fixing Knock-in steel boss
Hinge-cup diameter 35mm
Fixing-hole diameter 8mm
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from the hinge-cup centreline
Cup drilling depth 13mm
Drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm
Height adjustment Via the selected mounting plate
Material Steel
Finish Nickel plated
Pack quantity 1 hinge

Integrated BLUMOTION soft closing

BLUMOTION is built directly into the hinge and provides smooth, controlled closing even when the cabinet door is closed with force. No separate soft-close adapter is required.

The BLUMOTION mechanism can be deactivated on an individual hinge. This is useful where a small or lightweight door requires less damping.

Knock-in cup installation

The 71B3580 requires a 35mm hinge-cup drilling and two 8mm fixing holes positioned on 45mm centres. The steel dowels are pressed into the prepared holes to secure the hinge cup to the door.

Important: the knock-in boss is normally installed using suitable hinge-insertion equipment or a press-in ram. It is different from Blum INSERTA, which uses a locking flap for tool-free cup installation.

Mounting plate required

This product is supplied as one hinge. A compatible Blum CLIP cabinet-side mounting plate is required and must be ordered separately.

A commonly used option is the Blum HI173710 0mm cruciform cam mounting plate. Choose the mounting-plate height and fixing method required for your cabinet construction and desired door overlay.

Related hinges and accessories

Frequently asked questions

Does the Blum 71B3580 include soft close?

Yes. The BLUMOTION soft-close mechanism is integrated directly into the hinge.

Can BLUMOTION be switched off?

Yes. The damping mechanism can be deactivated on an individual hinge when less closing resistance is required.

What is the difference between knock-in and INSERTA?

A knock-in hinge uses steel dowels that are pressed into the prepared fixing holes, normally with insertion equipment. INSERTA uses a locking mechanism that secures the hinge cup without insertion machinery.

What drilling pattern is required?

The hinge requires a 35mm cup hole and two 8mm fixing holes positioned on 45mm centres. The hinge-cup drilling depth is 13mm.

Is a mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

What does overlay application mean?

Overlay means the closed cabinet door sits in front of and covers the cabinet side panel. The final overlay depends on the drilling distance, mounting-plate height and hinge adjustment.

Can the opening angle be restricted?

Yes. The compatible Blum 70T3553 opening-angle stop reduces the opening angle from 110° to approximately 86°.

TECHNICAL DETAILS

  • Application: Overlay
  • Size: 110° opening, 35mm cup, 45mm centres
  • Diameter: 35mm
  • Finish: Nickel Plated
  • Colour: Nickel
  • Code: HI71B3580
  • Material: Steel
