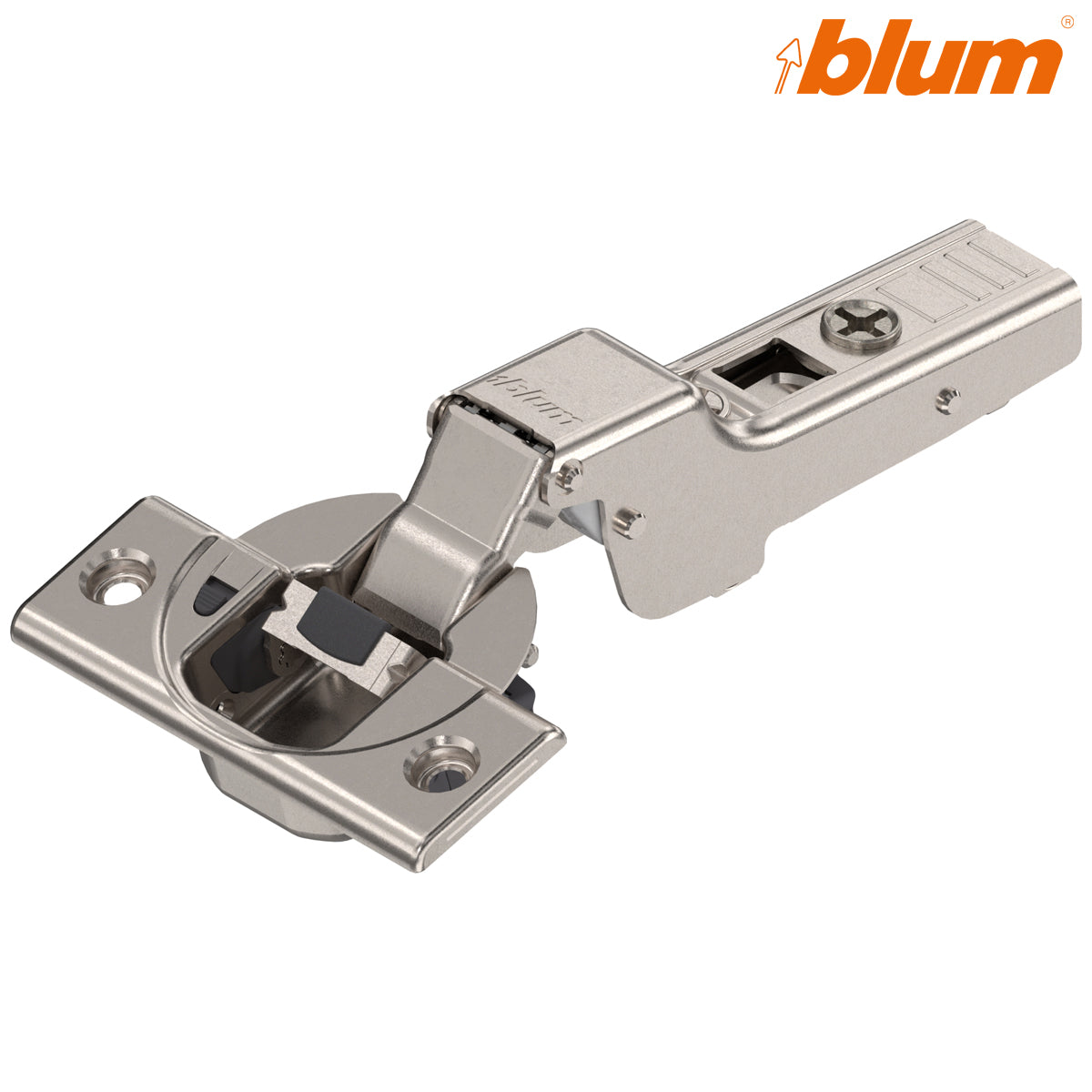

Blum 71B3650 CLIP top BLUMOTION 110° Half Overlay Screw-On Hinge

Blum 71B3650 CLIP top BLUMOTION 110° Half Overlay Screw-On Hinge

Stock Code: HI71B3650

£3.01 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B3650 CLIP top BLUMOTION Half-Overlay Hinge

The Blum 71B3650 is a nickel-plated, sprung 110° hinge for a dual or half-overlay cabinet application, where two doors share a central partition. Its half-cranked arm positions each door over part of the partition. Integrated BLUMOTION provides controlled soft closing and can be deactivated on an individual hinge when less damping is needed.

Choose the right fixing

This version has a screw-on 35 mm hinge cup, secured to the back of a prepared door with screws. Its arm clips onto a separately purchased, compatible Blum CLIP mounting plate, so the fitted door can be detached without tools. Screw-on is not the same door-fixing method as INSERTA.

  • Blum article 71B3650; Hart SKU HI71B3650.
  • Half-overlay or dual application, 110° opening and sprung self-closing action.
  • Integrated, switchable BLUMOTION soft close.
  • 35 mm screw-on cup; 45 mm fixing-hole centres, 9.5 mm offset and 13 mm cup drilling depth according to the existing product specification.
  • Nickel-plated steel; one hinge supplied, mounting plate sold separately.
  • Side adjustment ±2 mm and spiral-screw depth adjustment +3/−2 mm with a suitable mounting plate.

Plan the door thickness, cup drilling distance, cabinet geometry and plate height before drilling. Browse Blum CLIP top mounting plates. For the same half-overlay soft-close application with tool-free cup fixing, compare the 71B3690 INSERTA hinge; it requires a different door drilling pattern. The 71B3550 is a full-overlay hinge, not this half-overlay version.

Technical details

Application Dual / half overlay
Opening angle 110°
Closing Sprung, integrated switchable BLUMOTION
Cup fixing Screw-on, 35 mm
Finish Nickel-plated steel
Compatible cover-cap references listed 94M3603, 70.1663 and 70T3504; confirm application before ordering
Quantity One hinge; mounting plate not included

Frequently Asked Questions

What is a half-overlay hinge?

It positions two doors on opposite sides of a shared central cabinet partition, with each door partly overlaying the panel.

Does the 71B3650 include soft close?

Yes. BLUMOTION is integrated into the sprung hinge and can be deactivated on an individual hinge.

Is a mounting plate included?

No. Choose a compatible Blum CLIP mounting plate separately according to the cabinet plan.

What does screw-on mean?

The hinge cup is attached to the door using screws. The CLIP connection to the separate mounting plate is still tool-free for door removal.

Is it the same as the 71B3690?

No. Both are half-overlay BLUMOTION hinges, but the 71B3690 uses INSERTA cup fixing rather than this screw-on cup.

TECHNICAL DETAILS

  • Application: Dual
  • Colour: Nickel
