ExiSound Concealex A8100 Superior Recessed Drop Seal – 426 mm

ExiSound Concealex A8100 Superior Recessed Drop Seal – 426 mm

Stock Code: EXT102B

£13.84 GBP
Sale
View full details

PRODUCT DESCRIPTION

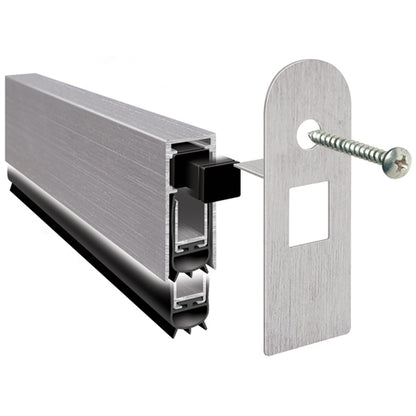

Choose this 426 mm ExiSound Concealex A8100 Superior when a recessed automatic drop seal is specified for the bottom of a suitable door. Its satin anodised aluminium profile houses a self-levelling, sound-insulating TPE seal. Confirm the door construction, routing space and required finished length before ordering.

426 mm seal specifications

  • Stock code: EXT102B
  • Nominal length: 426 mm
  • Profile: 35 mm deep × 14 mm wide
  • Maximum drop: 17 mm
  • Finish: satin anodised aluminium
  • Adjustment: spring-loaded, adjustable plunger
  • Installation: recessed centrally into the bottom of the door

Check the fitting method

The fitting instructions call for a 14 mm wide × 35 mm deep slot in the door bottom, with additional preparation for the endplates. Follow the instructions for the endplates and plunger adjustment. Compare the 330 mm recessed version if that nominal length suits your project. Where routing is unsuitable, see the face-fix Concealex version. Browse other door seals and draught-proofing products.

Fire, smoke and acoustic evidence

The A8100 Superior range brochure reports fire testing for 30 and 60 minutes to BS EN 1634-1:2014 and acoustic testing up to 44 dB to BS EN ISO 10140-2:2010. CERTIFIRE CF5785 addresses smoke-sealing use subject to its specific door-assembly and installation conditions. These are product test details, not a guarantee of the performance or rating of an installed door assembly.

Frequently asked questions

Is the 426 mm model surface mounted?

No. This A8100 Superior model is recessed into a prepared slot. The separately listed Concealex Facefix model is surface mounted.

How much can this seal drop?

The manufacturer specifies a maximum drop of 17 mm. Confirm the actual threshold gap and the complete door assembly requirements before selecting a seal.

Does this drop seal contain intumescent material?

No. CERTIFIRE CF5785 expressly states that the Concealex drop seals contain no intumescent material.

Does the product alone make a door FD30 or FD60 rated?

No. Check the tested or approved door assembly and the conditions of any applicable fire or smoke evidence.

TECHNICAL DETAILS

  • Application: Intumescent Products
  • Size: 35 mm deep × 14 mm wide
  • Width: 14 mm
  • Length: 426 mm
  • Finish: Satin anodised aluminium
