ExiSound Concealex A8100 Superior Recessed Drop Seal – 726 mm

ExiSound Concealex A8100 Superior Recessed Drop Seal – 726 mm

Stock Code: EXT102E

£18.34 GBP
Sale
View full details

PRODUCT DESCRIPTION

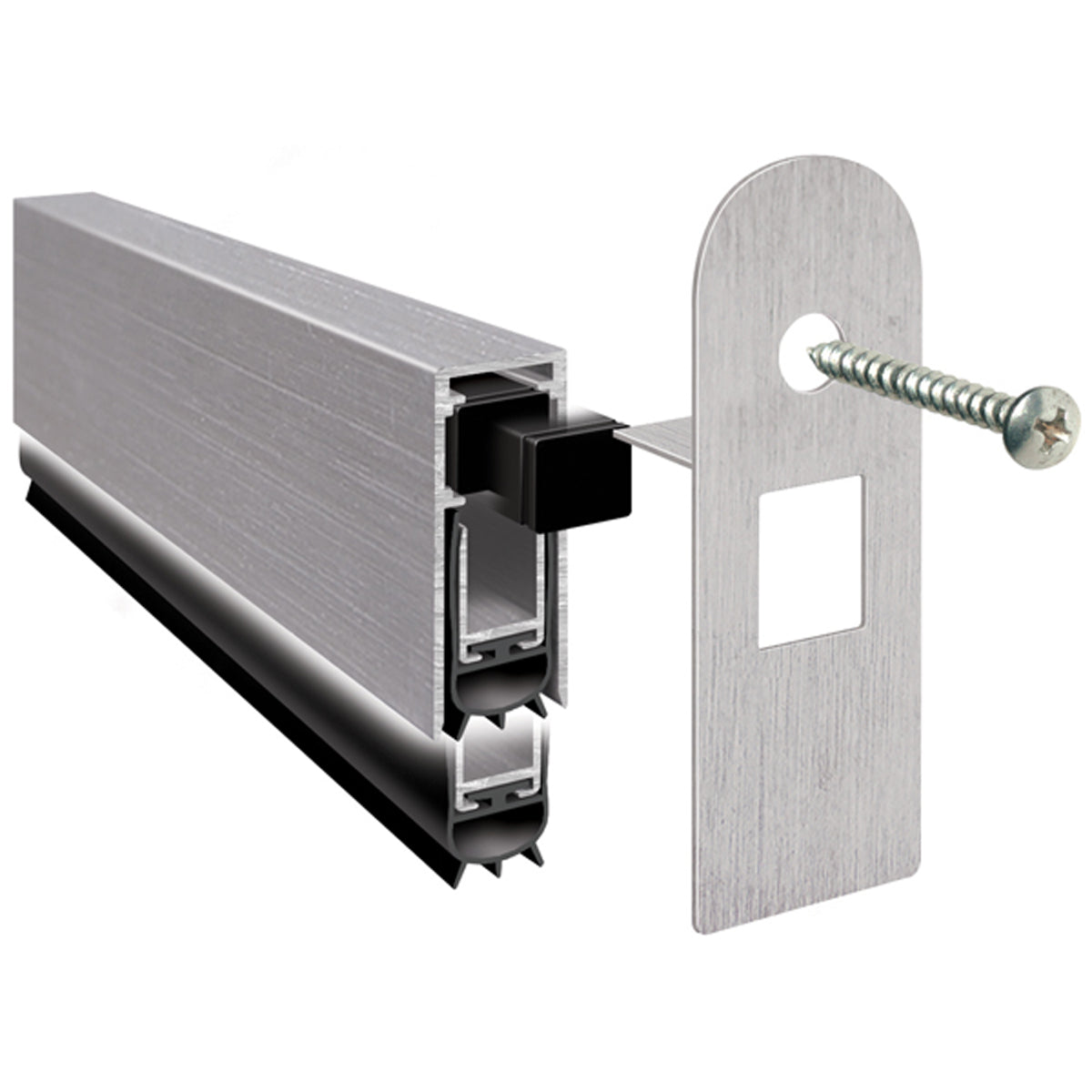

The 726 mm ExiSound Concealex A8100 Superior is a recessed automatic drop seal for a suitable door bottom. It combines a satin anodised aluminium casing with a self-levelling, sound-insulating TPE seal. Measure the door and check the complete assembly’s requirements before selecting the nominal length.

726 mm product specifications

  • Stock code: EXT102E
  • Nominal length: 726 mm
  • Profile: 35 mm deep × 14 mm wide
  • Maximum drop: 17 mm
  • Finish: satin anodised aluminium
  • Seal material: sound-insulating, self-levelling TPE
  • Operation: adjustable spring plunger and self-levelling seal
  • Fitting: recessed centrally into the bottom of the door

Measure, route and fit

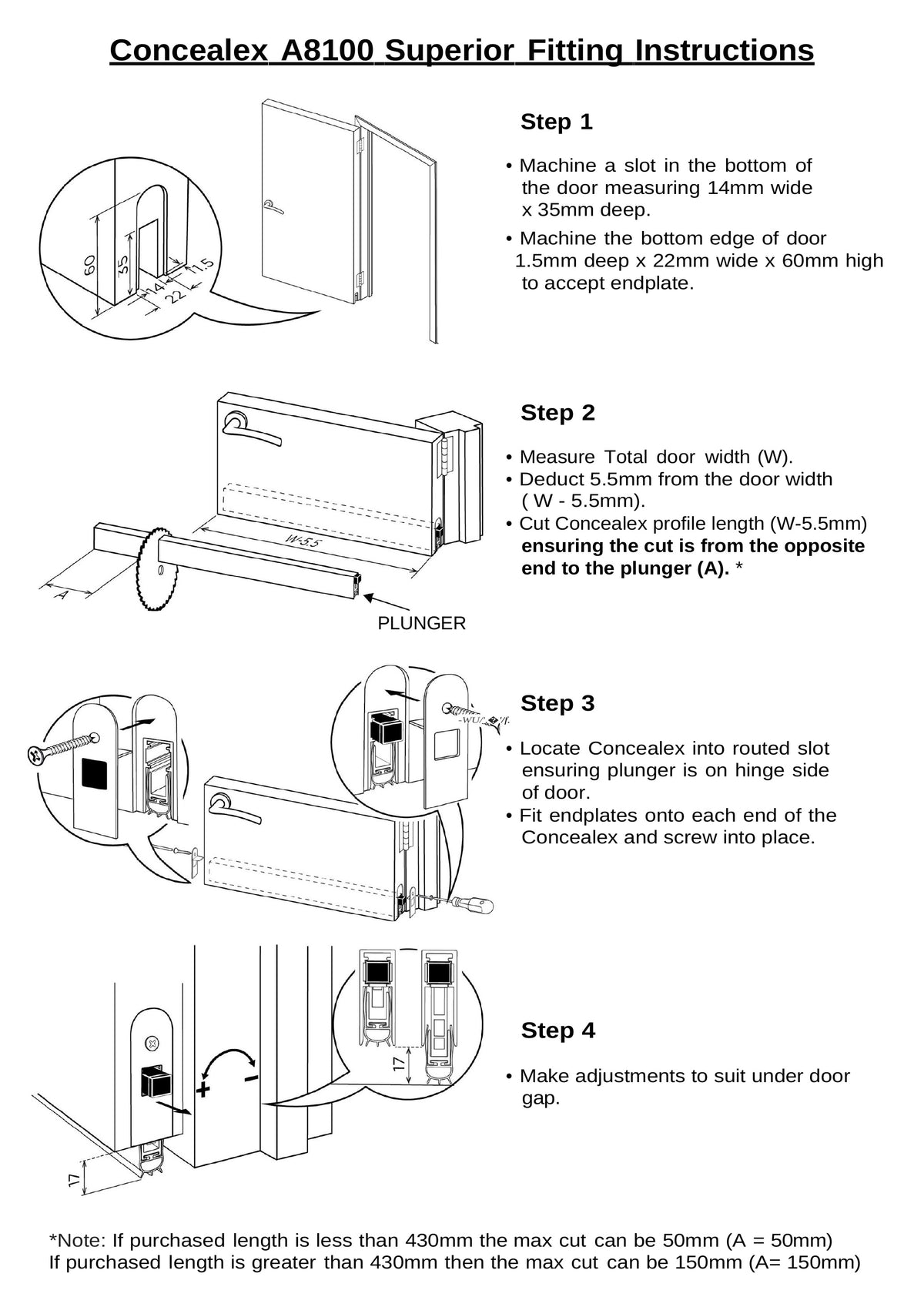

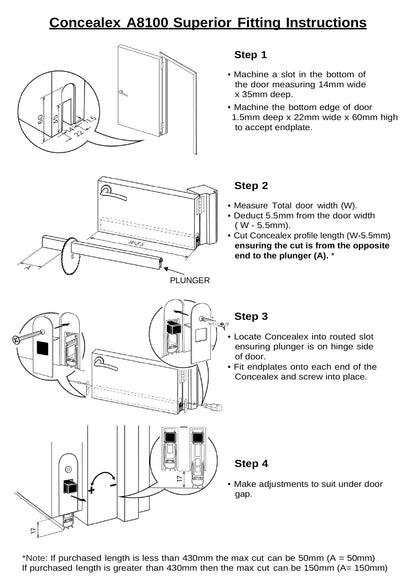

The A8100 Superior fitting instructions specify a 14 mm wide × 35 mm deep slot in the door bottom, with separate preparation for the endplates. Follow the fitting instructions for plunger position. For this 726 mm length, the manufacturer brochure permits trimming by up to 150 mm from the end opposite the plunger. Measure the door width and follow the full fitting instructions, including the endplate allowance, before cutting or routing.

For a shorter nominal length, compare the 626 mm recessed version. Where a recessed slot cannot be prepared, see the face-fix Concealex model. Browse the wider door sealing range.

Performance evidence

The manufacturer’s A8100 Superior range brochure reports fire testing for 30 and 60 minutes to BS EN 1634-1:2014 and acoustic testing up to 44 dB to BS EN ISO 10140-2:2010. CERTIFIRE CF5785 covers smoke-sealing use within its specified door-assembly and installation conditions. These product results do not automatically establish the fire or acoustic rating of an installed door assembly.

Frequently asked questions

How much can the 726 mm seal be shortened?

The manufacturer brochure permits up to 150 mm of trimming from the end opposite the plunger for this length. Check the required finished length before cutting.

Is this the surface-mounted version?

No. A8100 Superior is recessed into the prepared door bottom. Concealex Facefix is a separately listed surface-mounted design.

Where does the plunger sit?

Follow the model's fitting instructions for plunger position and adjustment after installation.

Is this an intumescent seal?

No. CERTIFIRE CF5785 states that the Concealex drop seals contain no intumescent material.

Does this product alone certify a door as FD30 or FD60?

No. Suitability depends on the evidence and installation conditions for the complete door assembly.

TECHNICAL DETAILS

  • Application: Intumescent Products
  • Size: 35 mm deep × 14 mm wide
  • Width: 14 mm
  • Length: 726 mm
  • Finish: Satin anodised aluminium
