ExiSound Concealex A8100 Superior Recessed Drop Seal – 826 mm

ExiSound Concealex A8100 Superior Recessed Drop Seal – 826 mm

Stock Code: EXT102F

£22.27 GBP
Sale
View full details

PRODUCT DESCRIPTION

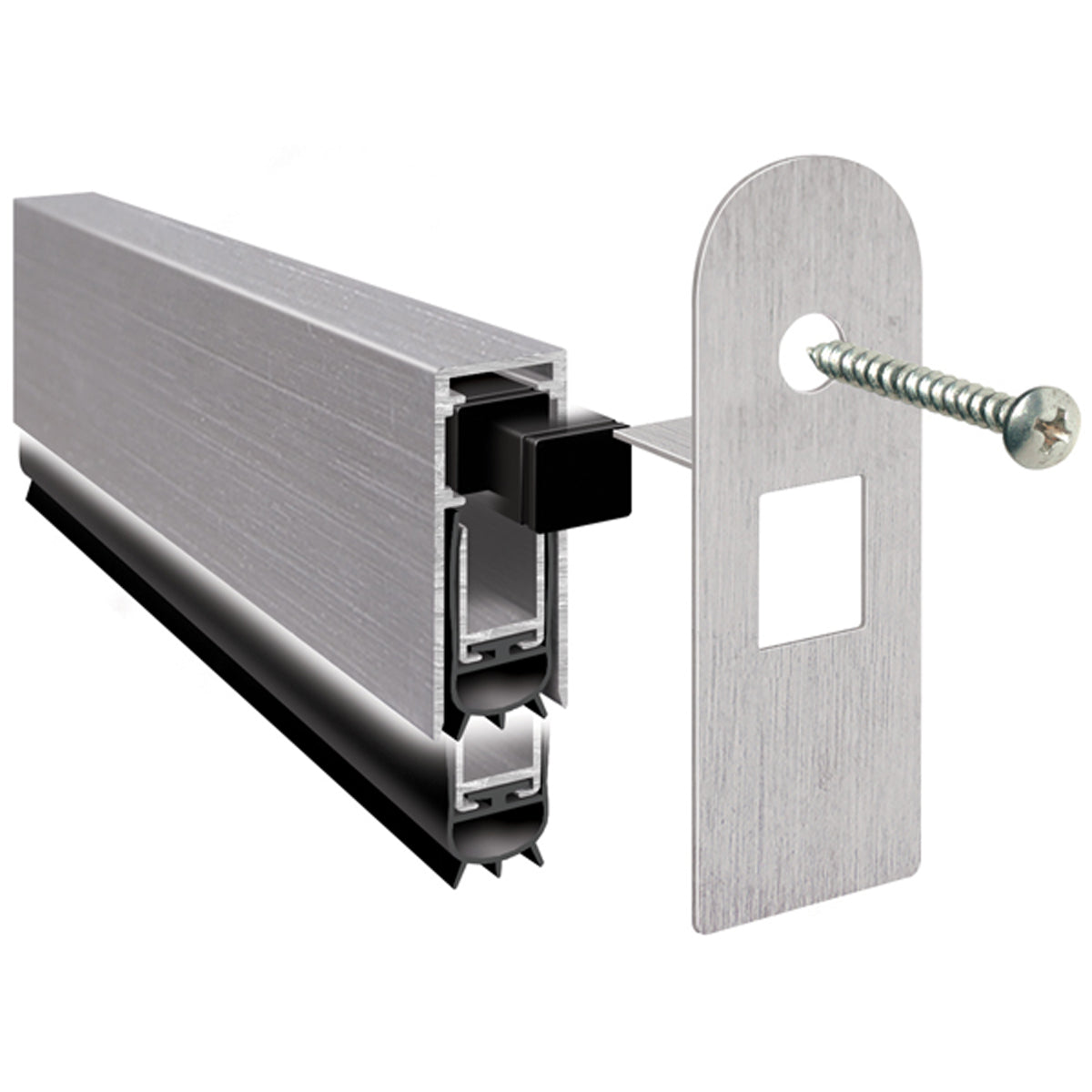

The 826 mm ExiSound Concealex A8100 Superior is an automatic drop seal that fits into a routed recess at the bottom of a suitable door. Its satin anodised aluminium casing holds a self-levelling, sound-insulating TPE seal. Check the 35 × 14 mm profile, door construction and finished length before ordering.

826 mm seal details

  • Stock code: EXT102F
  • Nominal length: 826 mm
  • Profile: 35 mm deep × 14 mm wide
  • Maximum drop: 17 mm
  • Finish: satin anodised aluminium
  • Seal: sound-insulating, self-extinguishing TPE
  • Adjustment: spring-loaded plunger
  • Fitting: recessed centrally into the bottom of the door

Length selection and fitting

Measure the door width before cutting. The supplied fitting instructions specify a profile length equal to the measured door width minus 5.5 mm, subject to the permitted trimming limit and endplate preparation. For this 826 mm seal, up to 150 mm may be cut from the end opposite the plunger. Route a 14 mm wide × 35 mm deep slot, prepare the endplates as instructed and place the plunger on the hinge side. Follow the full fitting sheet before machining the door.

Compare the 726 mm A8100 Superior for a shorter nominal length. If a recessed installation is unsuitable, see the Concealex Facefix drop seal. Browse other door sealing products.

Test evidence and suitability

The manufacturer’s A8100 Superior data reports fire testing for 30 and 60 minutes to BS EN 1634-1:2014 and acoustic testing up to 44 dB to BS EN ISO 10140-2:2010. CERTIFIRE CF5785 concerns smoke-sealing use within its specified door-assembly and installation conditions. A product test result is not an automatic fire or acoustic rating for an installed door assembly.

Frequently asked questions

What door preparation does this 826 mm seal need?

It requires a 14 mm wide × 35 mm deep recess in the door bottom, plus the endplate preparation detailed in the fitting instructions.

Can it be cut to a shorter length?

For this size, the supplied instructions permit a maximum reduction of 150 mm, cut only from the end opposite the plunger. Measure the door and check the fitting sheet first.

Where should the plunger be positioned?

The fitting instructions place it on the hinge side of the door.

Is A8100 Superior an intumescent strip?

No. CERTIFIRE CF5785 states that the Concealex drop seals contain no intumescent material.

Does it independently make a door FD30 or FD60 rated?

No. Check the evidence for the complete door assembly and the applicable installation conditions.

TECHNICAL DETAILS

  • Application: Intumescent Products
  • Size: 35 mm deep × 14 mm wide
  • Width: 14 mm
  • Length: 826 mm
  • Finish: Satin anodised aluminium
