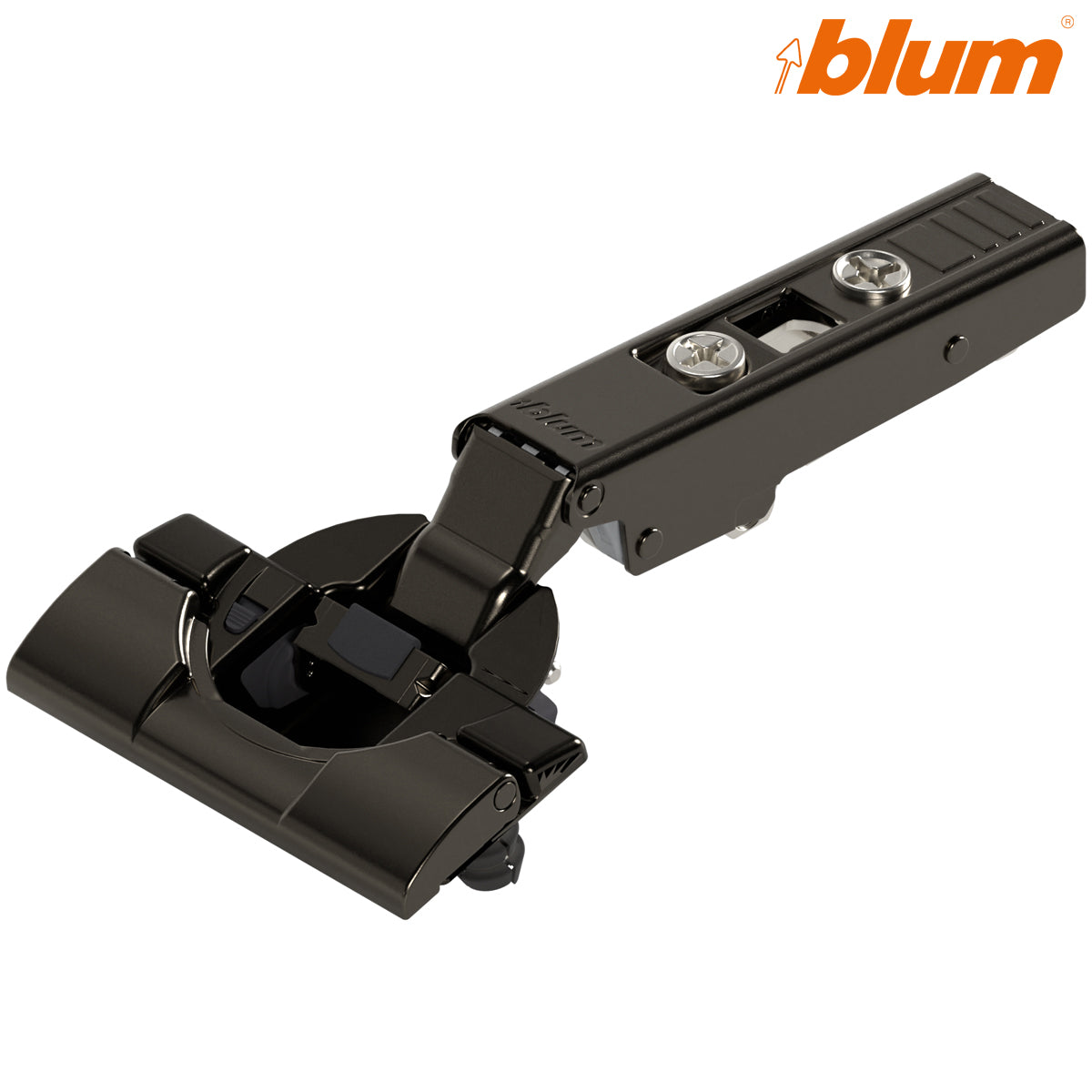

Blum 71B3590 CLIP top BLUMOTION 110° full-overlay INSERTA hinge – Onyx Black

The Blum 71B3590 combines integrated BLUMOTION soft close, tool-free INSERTA installation and an Onyx Black finish. Its straight hinge arm is designed for standard full-overlay cabinet doors in kitchens, bedrooms, living-room furniture and fitted cabinetry.

BLUMOTION is built into the hinge cup and provides smooth, controlled closing without a separate soft-close adapter. The damping function can be deactivated on individual hinges when less closing resistance is needed for a small or lightweight door.

Technical details

• Blum part number: 71B3590
• Hart Wholesale SKU: HIO71B3590
• Type: CLIP top BLUMOTION concealed hinge
• Application: full overlay
• Hinge arm: straight
• Opening angle: 110°
• Closing action: spring closing with integrated, deactivatable BLUMOTION
• Hinge-cup fixing: INSERTA tool-free locking
• Hinge-cup diameter: 35 mm
• Cup drilling depth: 13 mm
• Fixing holes: two 8 mm holes on 45 mm centres
• Cup drilling distance: 3–7 mm
• Side adjustment: ±2 mm
• Depth adjustment: +3/-2 mm
• Height adjustment: through the selected mounting plate
• Material: steel
• Finish: Onyx Black
• Quantity: one hinge
• Mounting plate: supplied separately

Tool-free INSERTA installation

Prepare a 35 mm cup hole to a depth of 13 mm and two 8 mm fixing holes positioned on 45 mm centres. Insert the hinge and operate the integrated locking lever to secure the expanding dowels. No separate hinge-cup fixing screws or insertion machinery are required.

Planning and fitting

A compatible Blum CLIP mounting plate must be ordered separately. The correct mounting-plate height depends on the cabinet construction, drilling distance and required door overlay.

For the verified nickel counterpart, see the Blum 71B3590 full-overlay INSERTA hinge. For screw-on or knock-in Onyx alternatives, compare the 71B3550 screw-on hinge or 71B3580 knock-in hinge. Browse the Blum INSERTA hinge range.

Matching components

The mounting plate, cover caps and other installation components are supplied separately. The hinge is supplied individually as one piece.

Frequently Asked Questions

Does the Blum 71B3590 include soft close?

Yes. BLUMOTION soft closing is integrated directly into the hinge.

Can BLUMOTION be deactivated?

Yes. The damping function can be switched off on individual hinges when less closing resistance is required.

What does INSERTA mean?

INSERTA is Blum’s tool-free hinge-cup fixing system. Its integrated lever expands the fixing dowels and secures the hinge without separate screws.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be purchased separately.

What drilling pattern is required?

The hinge requires a 35 mm cup hole, 13 mm deep, plus two 8 mm fixing holes positioned on 45 mm centres.

Is one hinge supplied?

Yes. This listing is for one hinge. Mounting plates and other installation components are supplied separately.
