BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1500 MD

BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1500 MD

Stock Code: HI20K1301

£9.38 GBP
Sale
View full details

PRODUCT DESCRIPTION

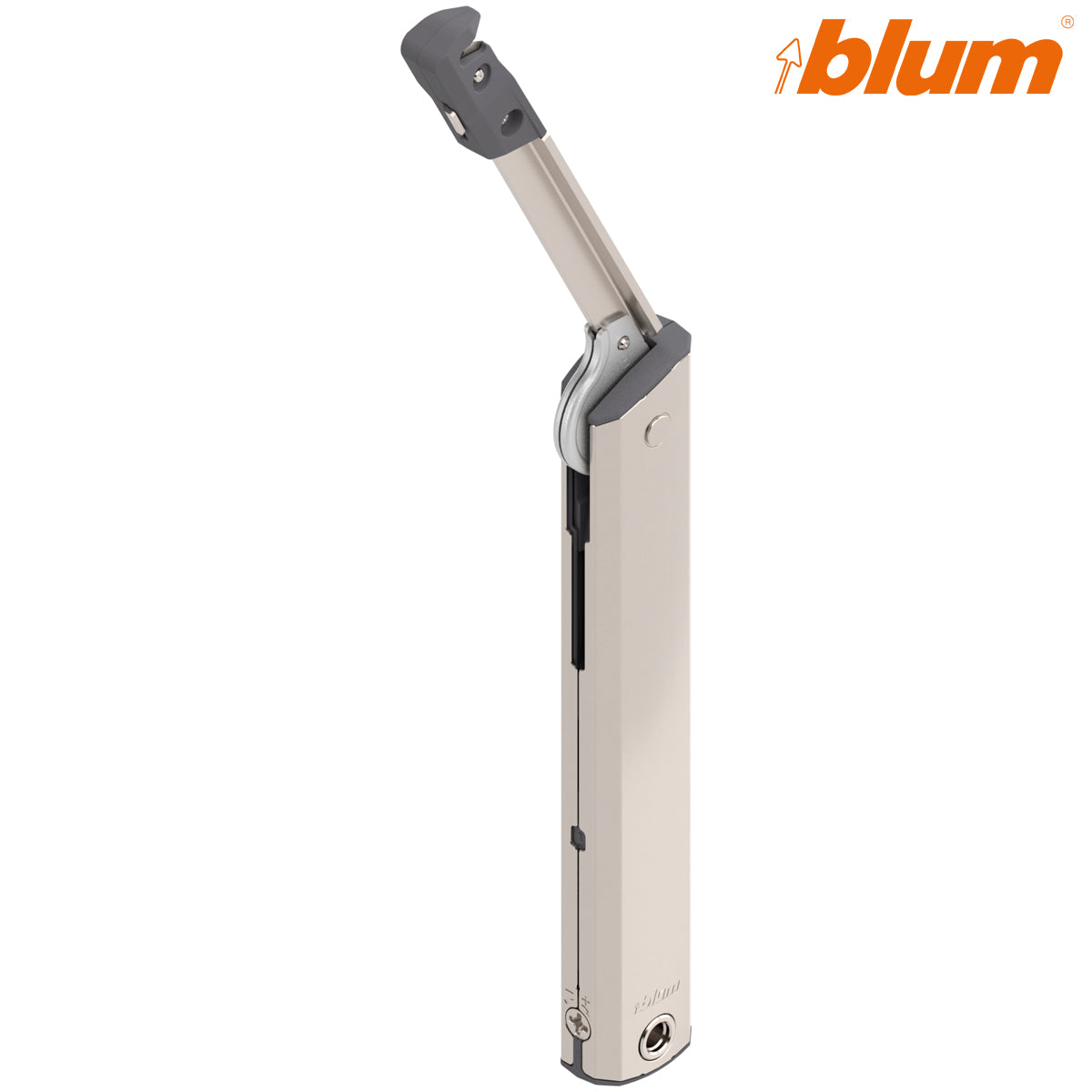

The Blum AVENTOS HK-XS lift mechanism MD 20K1301 is a compact stay-lift system for small overhead cabinet fronts with an opening moment of 500–1500 Nmm. The front rises upward and stays open, giving clear access to the cabinet interior. MD (Medium Duty) is the mid-range variant in the HK-XS range.

AVENTOS HK-XS is Blum’s stay-lift system for small wall unit doors and flap applications. The compact mechanism fits neatly inside the cabinet, making it ideal for narrow or shallow overhead units where space is limited.

Key features

  • Genuine Blum AVENTOS HK-XS lift mechanism
  • Blum article number 20K1301
  • Stock code HI20K1301
  • Opening moment range: 500–1500 Nmm (MD — Medium Duty)
  • Compact stay-lift for small overhead cabinet fronts
  • Front holds securely in the open position
  • Supplied as 1 piece

Opening moment selection

Select the correct mechanism using the calculated opening moment for your front. For the HK-XS range:

Mechanism Opening moment Duty
20K1101 200–1000 Nmm LD — Light Duty
20K1301 (this product) 500–1500 Nmm MD — Medium Duty
20K1501 800–1800 Nmm HD — Heavy Duty

Use the Blum Product Configurator to calculate the correct opening moment for your front before ordering.

Required separately

This mechanism requires two front fixing brackets, ordered separately — one of each:

  • 20K4101 — AVENTOS HK-XS front fixing bracket (one required)
  • 20K5101 — AVENTOS HK-XS front fixing bracket (one required)

Both brackets must be ordered to complete the installation. Check the Blum Product Configurator for the full component list for your specific cabinet configuration.

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HK-XS
  • Blum article number: 20K1301
  • Stock code: HI20K1301
  • Opening moment: 500–1500 Nmm
  • Duty: MD (Medium Duty)
  • Barcode: 9009494068108

Browse the full Blum AVENTOS HK range or use the Blum Product Configurator to verify your specification.

Frequently asked questions

What is the Blum AVENTOS HK-XS lift mechanism MD 20K1301 used for?

It is a compact stay-lift system for small overhead cabinet fronts with an opening moment of 500–1500 Nmm. The front rises upward and stays open.

What brackets are needed with this mechanism?

Two front fixing brackets are required, ordered separately — one 20K4101 and one 20K5101. Both must be ordered to complete the installation.

What is the difference between LD, MD and HD?

LD, MD and HD refer to the opening moment range the mechanism is rated for. Use the Blum Product Configurator to calculate the correct opening moment for your front weight and height before selecting a mechanism.

Is a TIP-ON version available?

Yes. The 20K1301T includes integrated TIP-ON for handleless operation.

TECHNICAL DETAILS

  • Colour: Nickel
